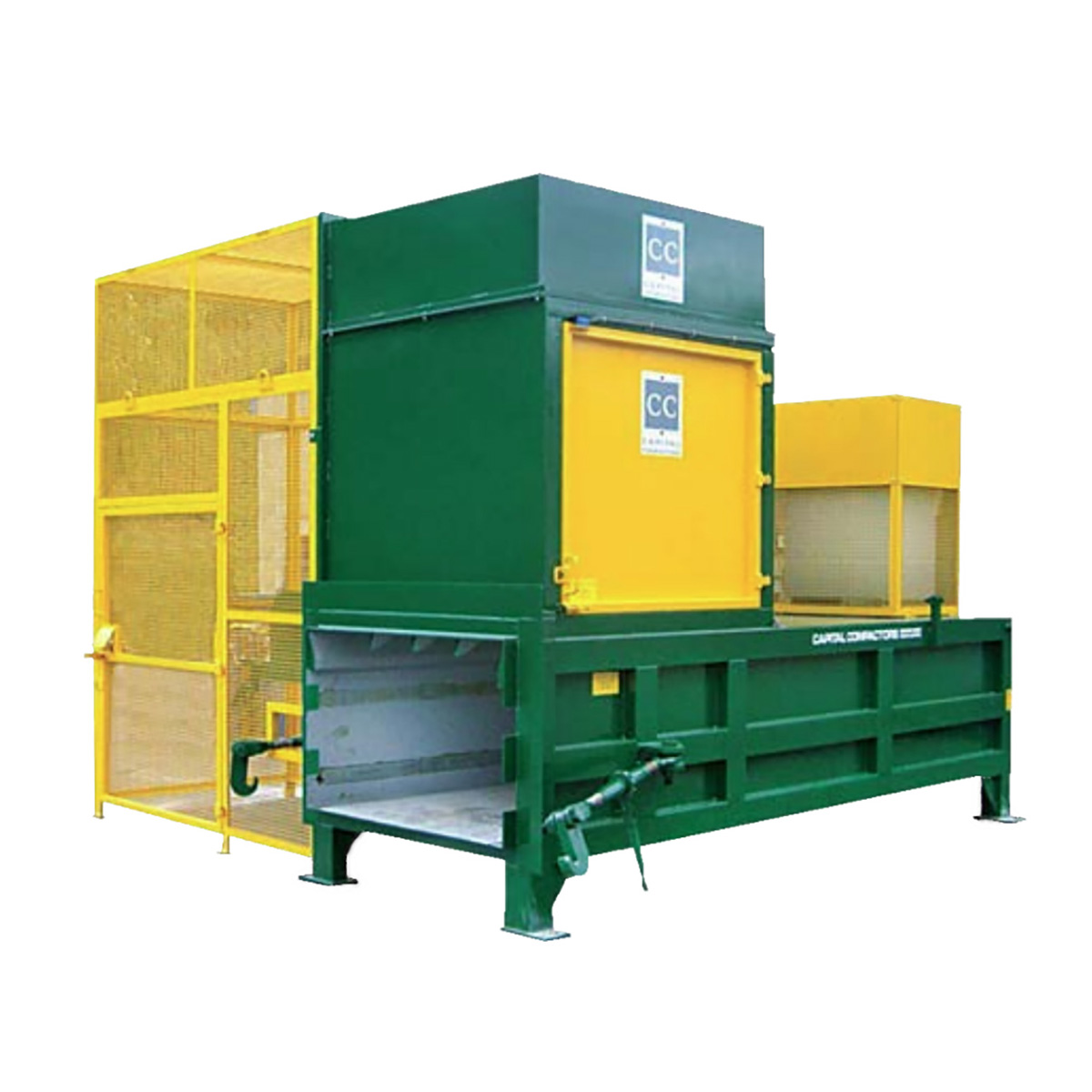

CS4 Static Waste Compactor
The CS4 Static Waste Compactor is a fixed installation compaction system designed for commercial and industrial facilities generating sustained waste volumes. Engineered for permanent deployment within dedicated waste handling areas, the CS4 forms part of a structured site waste management infrastructure.
Configured with a side bin lift and personnel safety enclosure, the CS4 supports controlled mechanical loading while maintaining operator protection in high-duty-cycle environments.
Performance Data
- Compaction Force: 40 Tonnes
- Motor Power: 7.5kW
- Cycle Time: 110 Seconds
- Volume Per Stroke: 3.66m³
Key Features
- Heavy-duty hydraulic compaction system
- Static installation design for permanent deployment
- Integrated side bin lift for wheeled container loading
- Personnel safety enclosure for protected operation
- Designed for sustained commercial and industrial use
Operational Positioning
The CS4 is typically specified where portable compactors are no longer sufficient and a fixed compaction system is required. Paired with compatible static compactor containers, it reduces transport frequency and improves overall waste handling efficiency.
Positioned below twin-cylinder high-performance models, the CS4 provides reliable compaction for sites requiring structured infrastructure without the highest-duty configuration.
Installation & Infrastructure
As a static unit, the CS4 requires appropriate ground preparation, electrical supply and integration with compatible container bodies. Static compactors are typically installed within defined waste zones in distribution centres, manufacturing plants and municipal facilities.
Build & Compliance
- Manufactured in accordance with CE and UKCA requirements
- Designed to meet current machinery safety standards
- Industrial-grade hydraulic components
Service & Support
The CS4 is supported by experienced engineers for installation, commissioning and ongoing maintenance. Supplied with a 12 month warranty (model and installation dependent).
Request a No Obligation Quote
Request a No Obligation Quote on your waste management equipment by filling out the form below, or contact us on Phone: +44 (0)1299 251 333, Email: enquiries@iegemea.com
Applications
- Distribution centres and logistics hubs
- Manufacturing facilities
- Retail and supermarket operations
- Municipal waste handling environments
