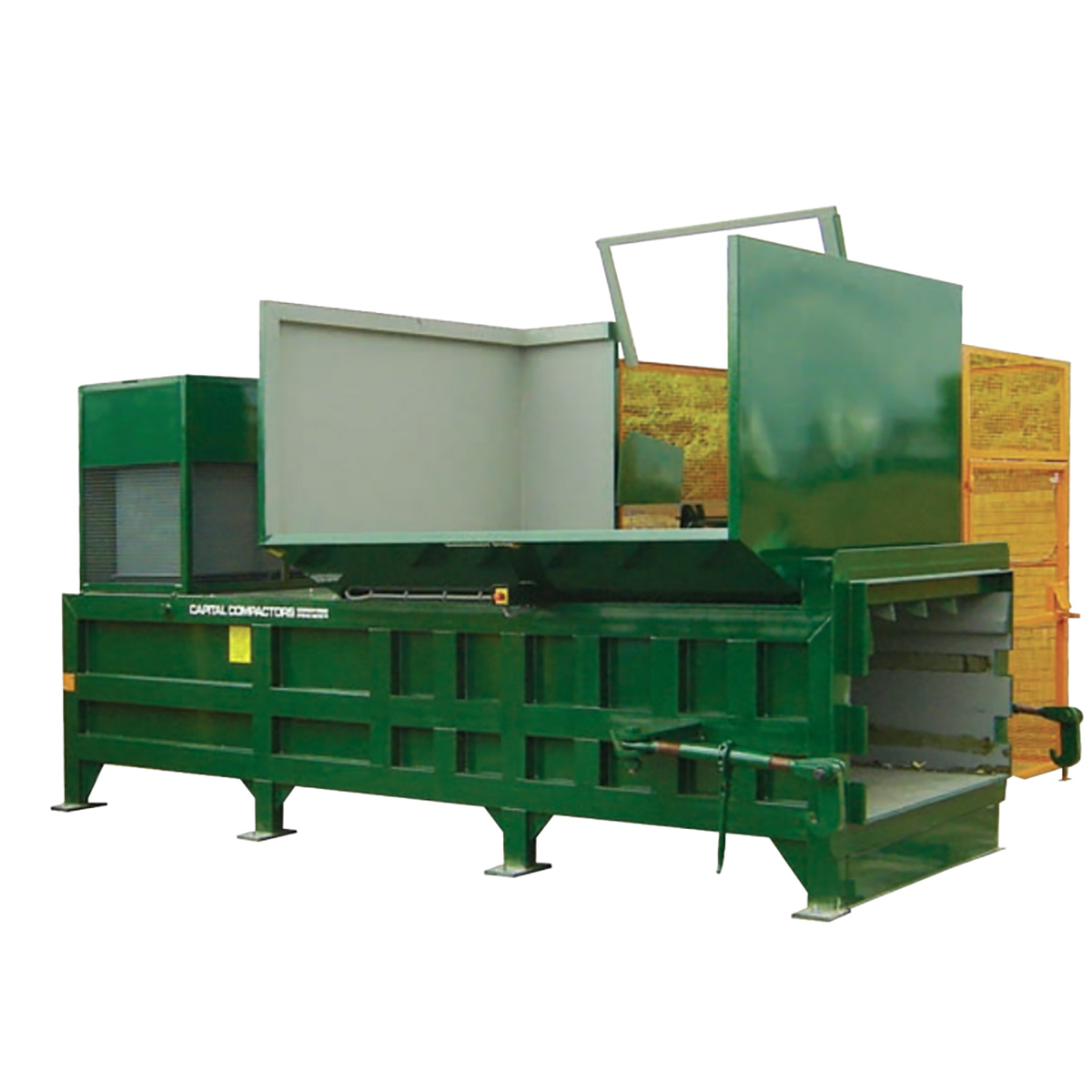

CS5 Twin Cylinder High Performance Static Waste Compactor

The CS5 Twin Cylinder Static Waste Compactor is a high-performance fixed installation compaction system engineered for sustained high-volume waste streams. Featuring a twin cylinder hydraulic design, the CS5 delivers enhanced compaction efficiency and consistent performance in demanding commercial and industrial environments.

Configured with a side bin lift and personnel safety enclosure, this system supports controlled waste loading while maintaining compliance with modern safety standards.

Key Features

• Twin cylinder hydraulic compaction system
• High-performance static installation design
• Integrated side bin lift for mechanical loading
• Personnel safety enclosure for protected operation
• Designed for continuous commercial and industrial use

Operational Positioning

The CS5 is typically specified for sites generating sustained volumes of general waste or recyclable material where portable compactors are insufficient. As a static unit, it forms part of a permanent waste handling infrastructure and is paired with compatible container bodies for collection and transport.

The twin cylinder configuration provides balanced compaction force and improved operational reliability in high-duty-cycle environments.

Loading & Safety Configuration

The integrated side bin lift enables safe and controlled emptying of wheeled containers into the compaction chamber. The personnel safety enclosure provides operator protection during lifting and loading operations, supporting compliance with workplace safety requirements.

Installation & Infrastructure

The CS5 is installed as a fixed compaction unit requiring appropriate ground preparation and electrical connection. Static compactors are typically deployed in dedicated waste handling zones within industrial, logistics or municipal facilities.

Build & Compliance

• Manufactured in accordance with CE and UKCA requirements
• Designed to meet current machinery safety standards
• Industrial-grade hydraulic system for sustained duty cycles

Performance Data

• Compaction Force: 48 Tonnes

• Motor Power: 11kW

• Cycle Time: 110 Seconds

• Volume Per Stroke: 3.66m³

Service & Support

The CS5 is supported by experienced engineers for installation, commissioning and ongoing maintenance. Supplied with a 12 month warranty (model and installation dependent).

Request a No Obligation Quote

Request a No Obligation Quote on your waste management equipment by filling out the form below, or contact us on Phone: +44 (0)1299 251 333, Email: enquiries@iegemea.com

Applications

• Distribution centres and logistics hubs
• Manufacturing plants
• Large retail operations
• Municipal waste handling facilities
